THE FIRST RIGID SOLUTION BY SOLBIAN

SunBoard

Solar kit for lifelines

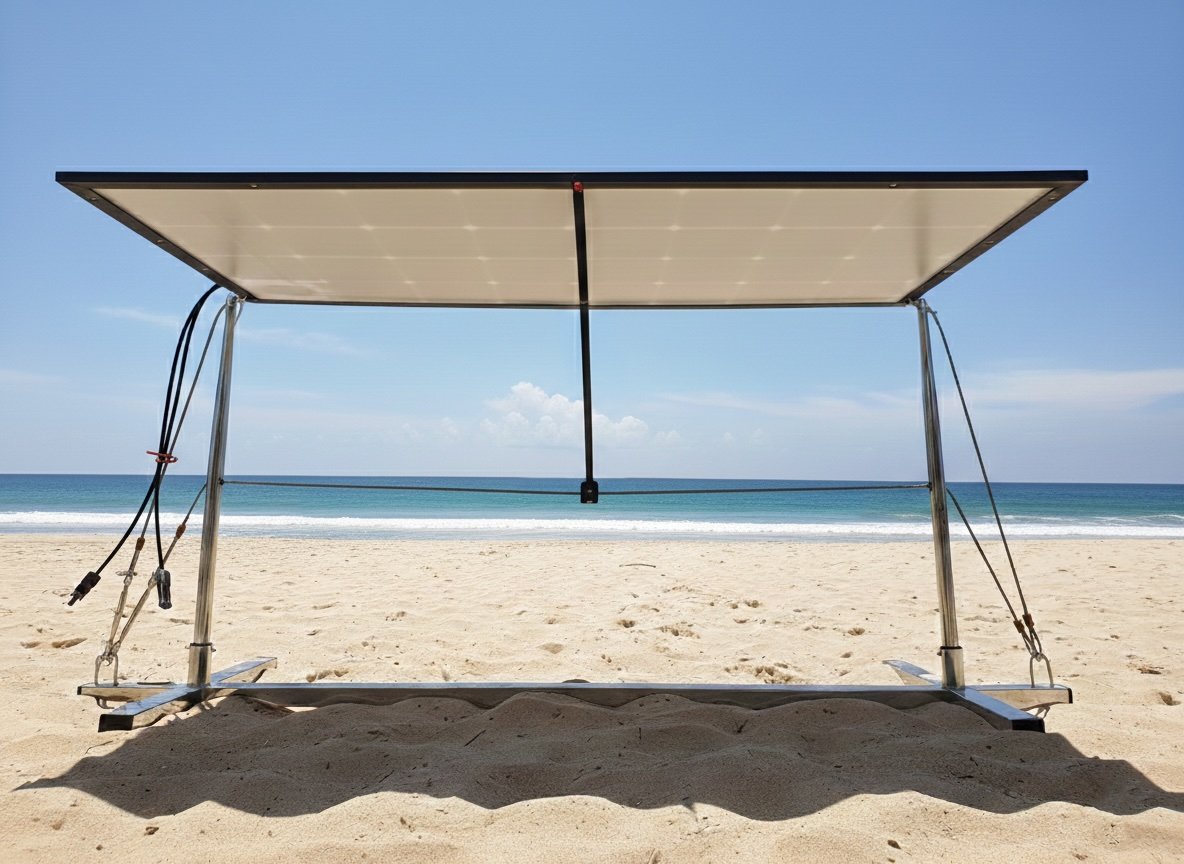

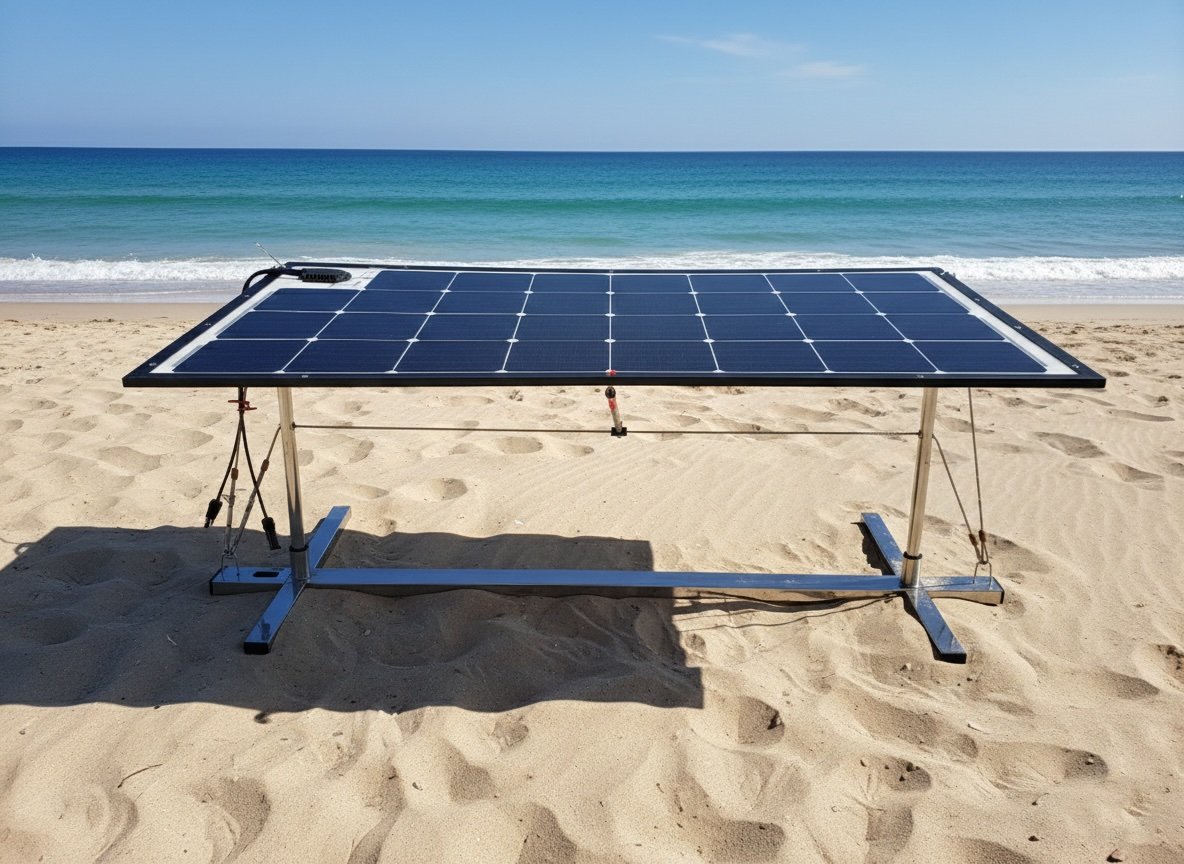

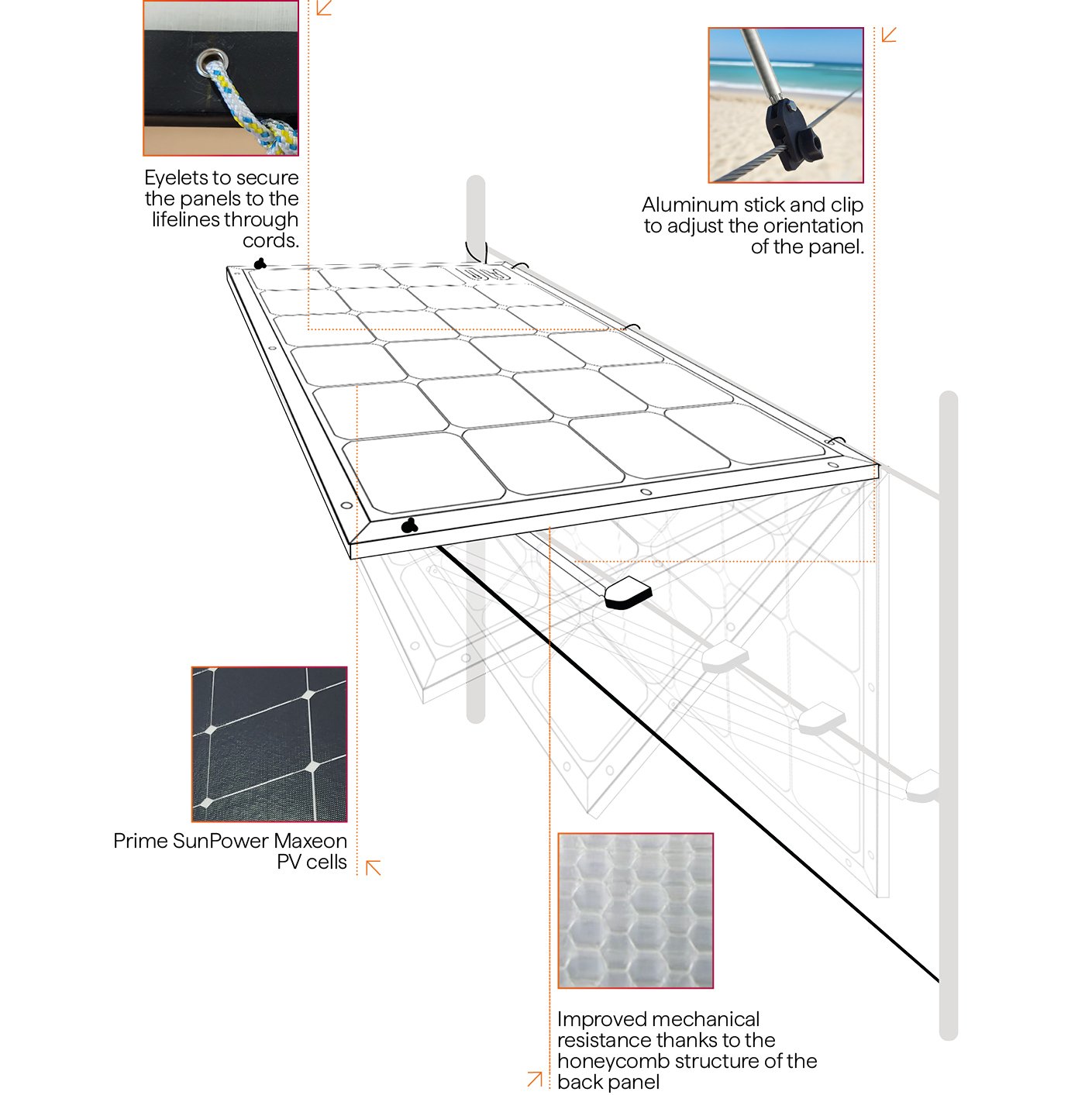

SunBoard is a complete energy solution specifically engineered for direct installation onto boat lifelines. This system features Solbian’s signature high-efficiency solar panel, now evolved into a rigid module thanks to an advanced honeycomb-structured backing.
Designed for maximum energy harvesting, the integrated mounting system allows for full adjustability. With a range of motion from 0 to 90 degrees, you can easily orient the panel to follow the sun’s path and maximize your power output throughout the day.

The first rigid Solbian panel

This kit introduces Solbian’s first rigid solar panel. This new construction is engineered specifically to provide a stable, non-flexing surface for lifeline installations.

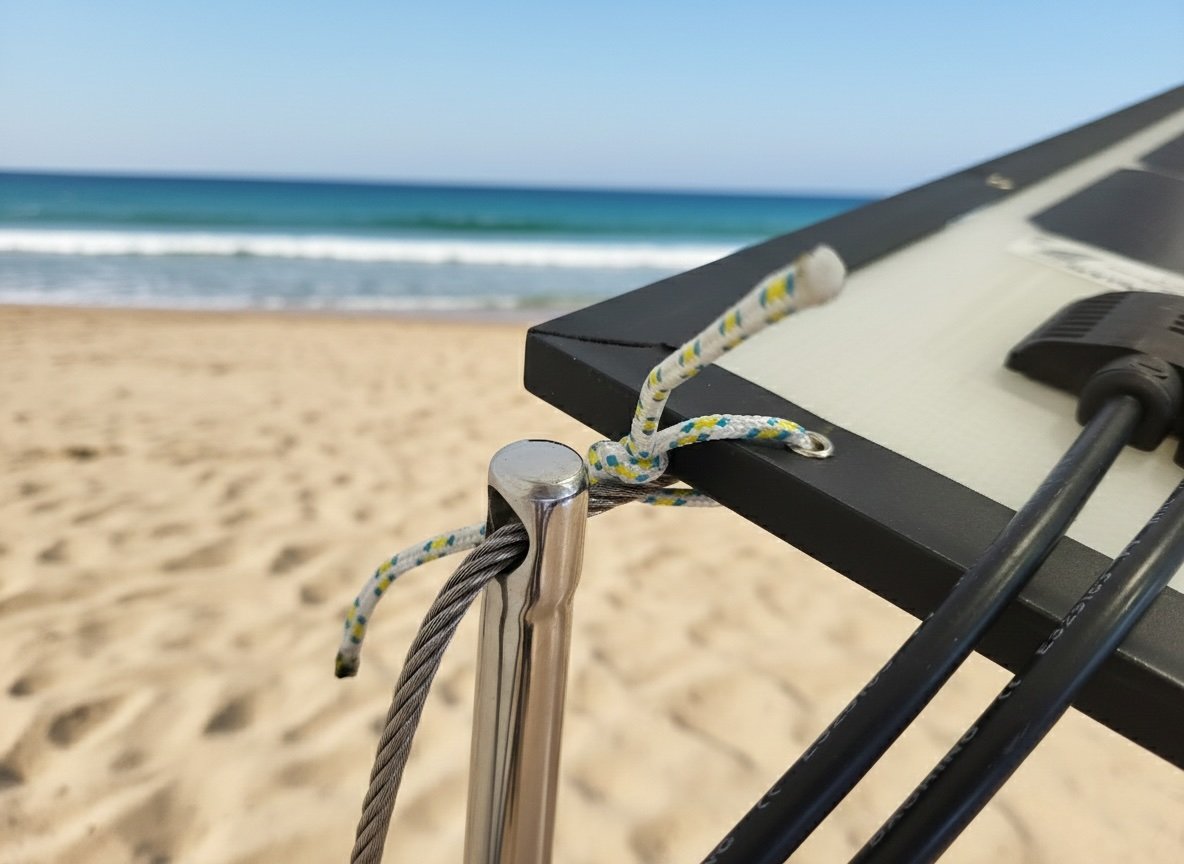

Upper security

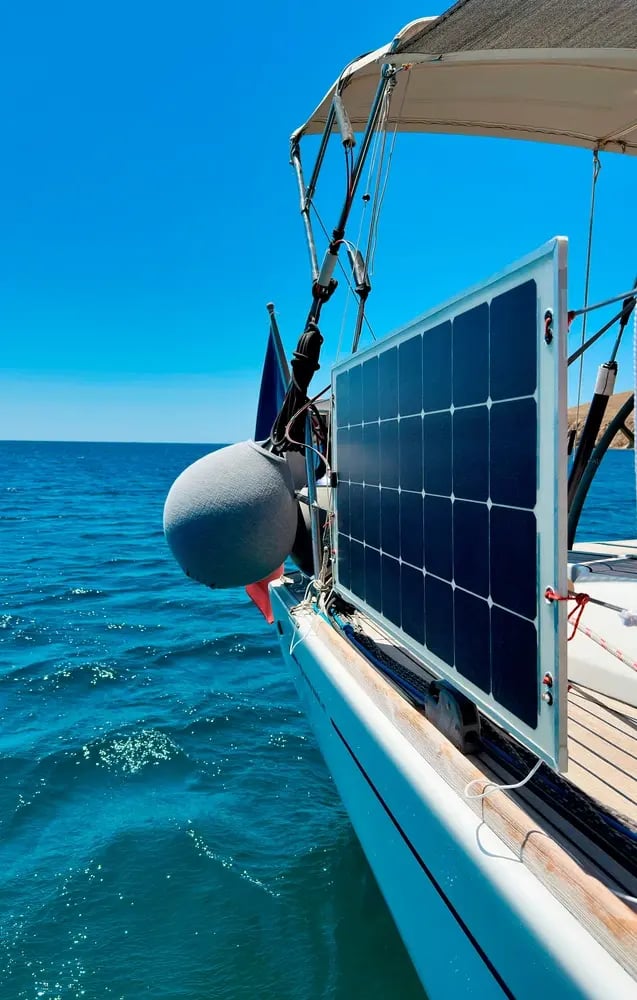

The panel is secured to the upper lifeline and the stanchion by means of cords fastened to the perimeter eyelets. This configuration guarantees maximum stability of the module in its stowed position, even in high wind conditions

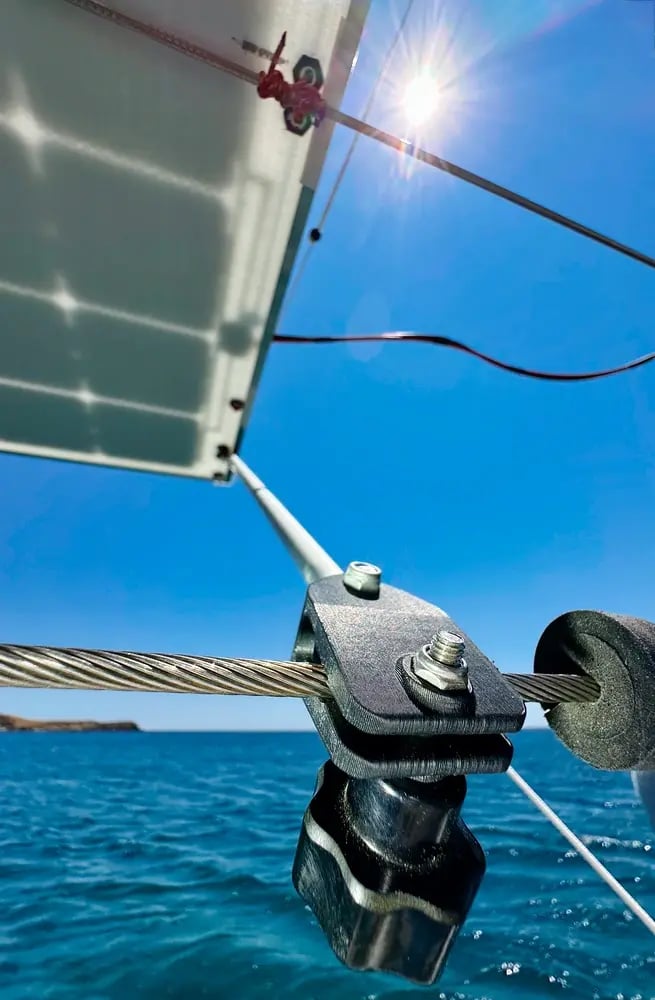

Sliding & tilting

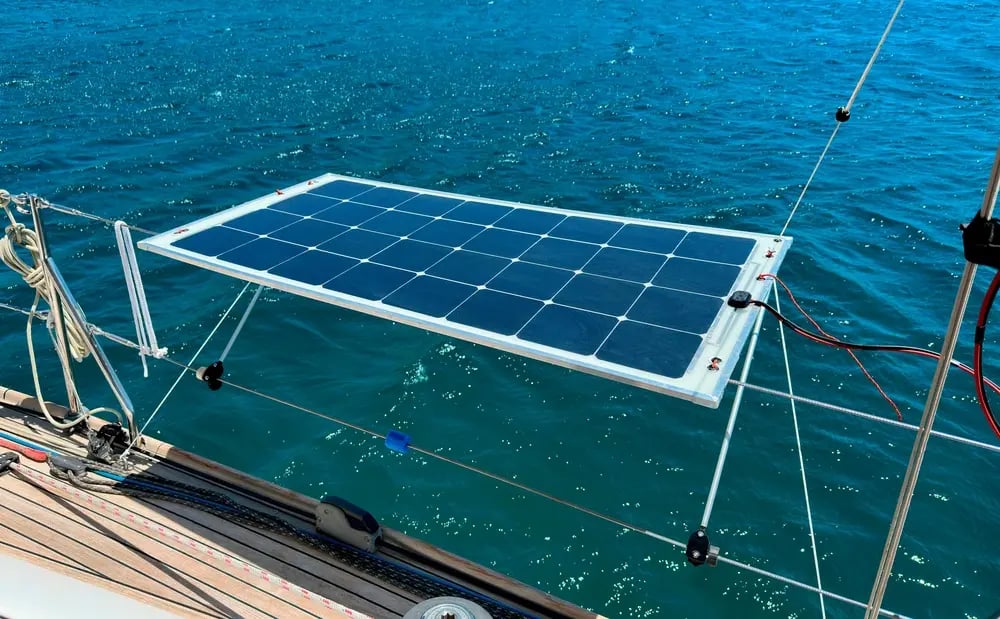

The lower edge is secured to an aluminum stick equipped with clips that slide along the lifeline. This mechanism allows for positioning the panel and adjusting its tilt from 0 to 90 degrees, ensuring optimal solar exposure at all times.

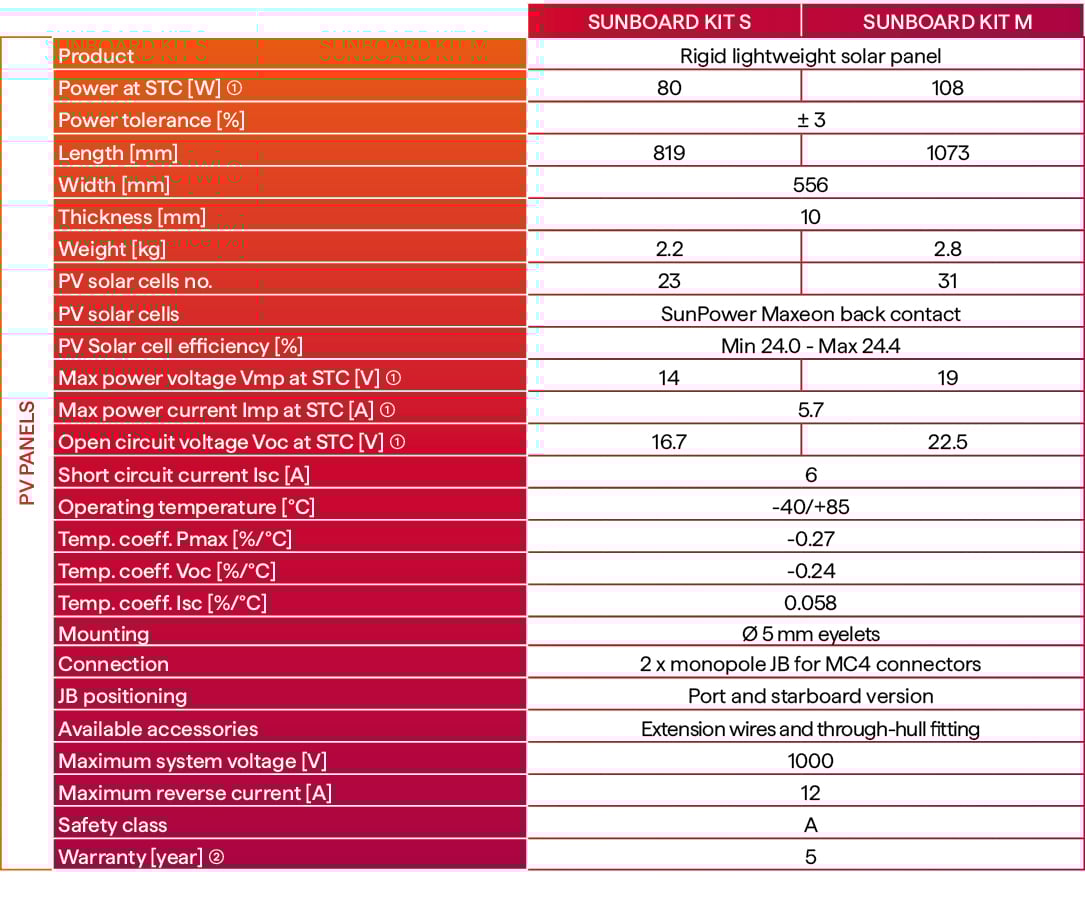

PV PANELS DATA

¹Values at STC = Standard Test Conditions: (a) light spectrum for an air mass of 1.5; (b) irradiance of 1000 W/m2 with perpendicular incidence and (c) cell temperature of 25 °C. Measurements carried out according to the Standard IEC 61215 requirements.
²See “Solbian warranty policy” for additional information

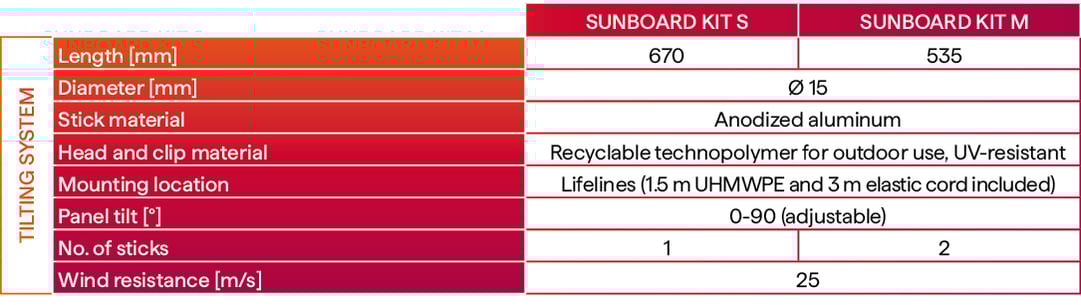

SunBoard tilting system data eng-1
